Clean, healthy indoor air has never been more important.

Air Patrol continuously monitors indoor air quality.  When needed, Air Patrol automatically circulates the polluted air through the HVAC’s filtration system until the air quality reaches an appropriate level.

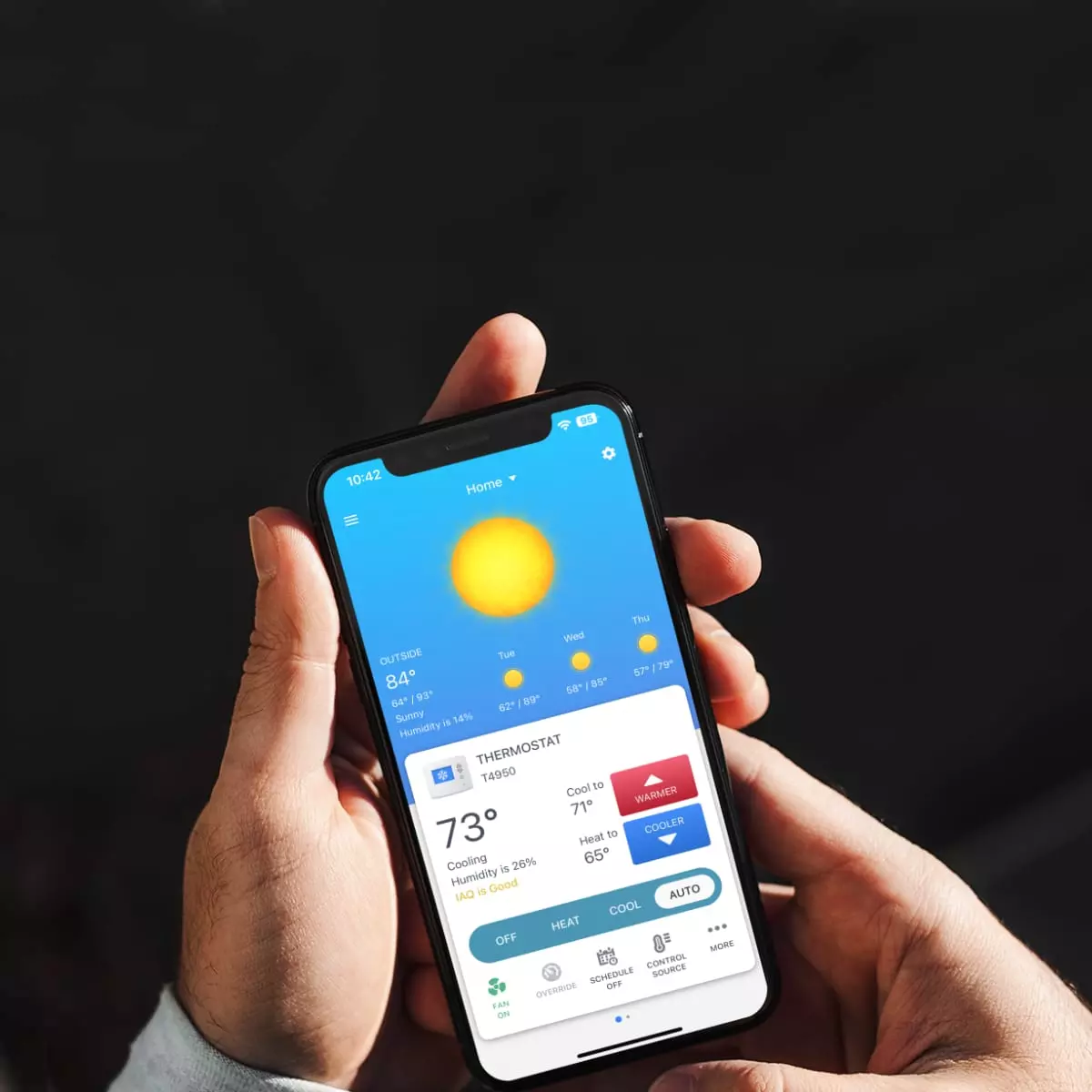

Skyport Mobile

Control the Explorer IAQ from across the room, or across the world.

Learn More »

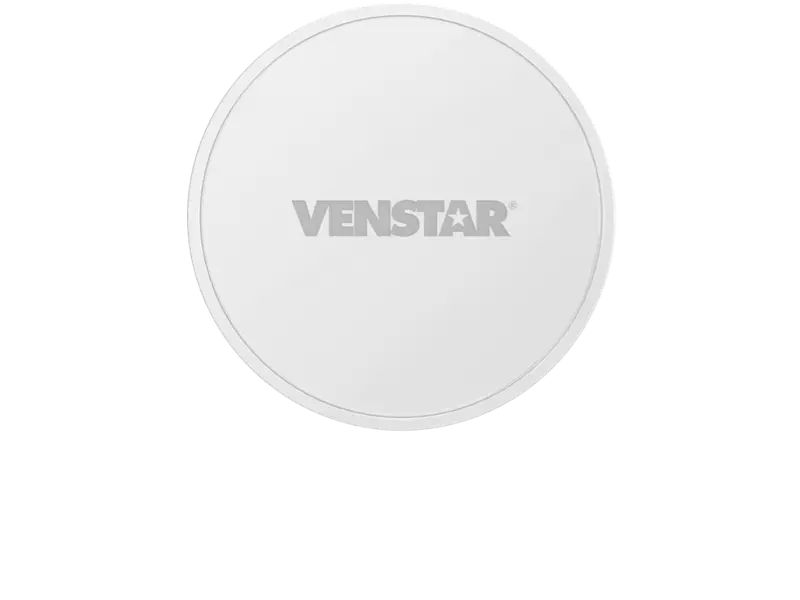

Built in WiFi, Bluetooth, & VenNet

Explorer IAQ is the first Venstar thermostat to include built-in Wifi, Bluetooth, and VenNet connectivity which provides compatibility with the new Easy pairing wireless sensors.

Learn More »

Geo-Fencing

Using the mobile app and Skyport, Venstar WiFi-connected thermostats know when you are leaving or coming home, maximizing comfort and energy savings.

Geo-fencing creates an adjustable perimeter around the home.

When the last person leaves the house and crosses the perimeter, the thermostat goes into energy-saving mode.

When the first person returns home, the thermostat goes into comfort settings.

Venstar's Configurator App

Easy Setup. Using Venstar's Configurator App, setting up your thermostat has never been easier!

Learn More »

Voice Control

Explorer IAQ Works with Google Assistant and Amazon Alexa.

Learn More »
  • image
  • image
  • image

With the built-in API, All of Vestar's connected thermostats can fit into most smart home systems or applications.

  • A common programming interface and specification to monitor and control your thermostat’s functions on your Wi-Fi network
  • Integrate Venstar thermostats into home automation systems
  • Works with many existing 3rd party apps with specific drivers for Control 4 and RTI
Learn More »

All product and company names and logos are trademarks™ or registered® trademarks of their respective holders.

IECC 2015/2018 Compliance

For less than half the cost of the competition, you can now use the Venstar Explorer T4950IAQ to meet code regulations in states that require IECC 2015 compliance.

Title 24 Compliant

Automated Demand Response With Available Utility Rebates.

Pay for only the features you need.

The Explorer IAQ comes in four different models for residential and commercial applications with a special model just for the classroom.

Look at the comparison chart below to find the perfect model for your application.

Standard Features

  • AIR PATROL – Indoor Air Quality sensor built-in that continuously monitors IAQ
  • IAQ levels viewable on display and free mobile app / website
  • Output when AIR PATROL measures IAQ above defined limit, all except T4975-IAQ
  • Built-in Wi-Fi, Bluetooth and VenNet radios
  • 3H/2C (gas/electric) or 4H/2C (heatpump), all except T4975-IAQ
  • 2H/4C (gas/electric only) on T4975-IAQ for 1 to 4 compressor control
  • Switchable: 7 day programmable or non-programmable (T4950SCH-IAQ is 5+2 day)
  • Switchable: auto changeover or heat, cool or heat/cool only
  • Controls humidification, dehumidification and reheat
  • Dry contact input for FDD, condensate overflow or occupancy control
  • Scrolling information display makes setup easy

Standard Features

  • Large LED backlit display with adjustable backlight intensity and nighttime dimming
  • Accumulates and shows heat, cool and aux heat runtimes
  • Setpoint limiting or total button lockout
  • Adjustable inter-stage timers and deadbands
  • Smart recovery (attempt to condition space before morning / occupied start time)
  • Bi-color LED indicates a cooling or heating demand
  • Can control to remote wired or wireless sensors
  • Easy pairing VenNet wireless sensors
  • Choice of English, Spanish or French for scrolling display
  • Fahrenheit or Celsius for temperature values
  • FDD notifications
  • CA Title 24 compliant
  • Open ADR 2.0b compliant
  • Local API for 3rd party control applications via wifi
FEATURES T3950-IAQ
24V Output turns on when IAQ is poorer than defined limit
Internal humidity sensor for humidification, dehumidification and reheat
Selectable non-programmable or 7 day programmable
Adjustable interstage timers and deadbands
Setpoint Limits
Dry Contact Input
Single button press for Home/Away
Programmable fan schedule
Dualfuel capable
Heatpump or electric aux heat lockout based on outdoor temperature
T3950-IAQ
24V Output turns on when IAQ is poorer than defined limit
Internal humidity sensor for humidification, dehumidification and reheat
Selectable non-programmable or 7 day programmable
Adjustable interstage timers and deadbands
Setpoint Limits
Dry Contact Input
Single button press for Home/Away
Programmable fan schedule
Dualfuel capable
Heatpump or electric aux heat lockout based on outdoor temperature
FEATURES T4950-IAQ T4975-IAQ T4950SCH-IAQ
24V Output turns on when IAQ above defined limit
Adjustable interstage timers and deadbands
Selectable non-programmable or 7 day programmable
Separate weekday/weekend schedule
365-Day programmable when connected to Skyport
Setpoint Limits
Built-in light sensor
Programmable Output
Pre-occupancy fan purge
Pre-occupancy heat/cool (morning warmup/cooldown)
Up to 4 hour override
Programmable override up to 6 hours
Fan reverts to auto mode when schedule unoccupied
Dry contact input
Perfect for classroom operation
Controls 1, 2, 3 or 4 compressor stages
Separate count of override runtime
Separate count of light runtime
T4950-IAQ T4975-IAQ T4950SCH-IAQ
24V Output turns on when IAQ above defined limit
Adjustable interstage timers and deadbands
Selectable non-programmable or 7 day programmable
Separate weekday/weekend schedule
365-Day programmable when connected to Skyport
Setpoint Limits
Built-in light sensor
Programmable Output
Pre-occupancy fan purge
Pre-occupancy heat/cool (morning warmup/cooldown)
Up to 4 hour override
Programmable override up to 6 hours
Fan reverts to auto mode when schedule unoccupied
Dry contact input
Perfect for classroom operation
Controls 1, 2, 3 or 4 compressor stages
Separate count of override runtime
Separate count of light runtime

Explorer IAQ (Residential)

Model T3950-IAQ - Literature

Explorer IAQ (Commercial)

Model T4950-IAQ - Literature

Model T4975-IAQ - Literature

Model T4950SCH-IAQ - Literature
